Zhengye Line Width Tester

Used to measure the widths of inner and outer range of semi PCBs after etching (before solder masking).

Enquire now

Call our global sales and customer support team on +44 (0) 2380 667 486 for more information.

Features and benefits

1 year warranty

Easy operation

Precision excellence

Information

Machine Model

Line Width Tester

Manufacturer

Zhengye

Key Features

1 year warranty, Easy operation, Precision excellence

Description:

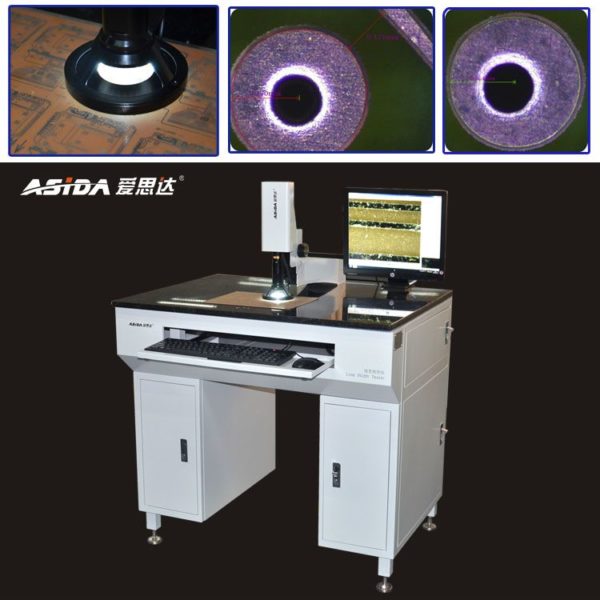

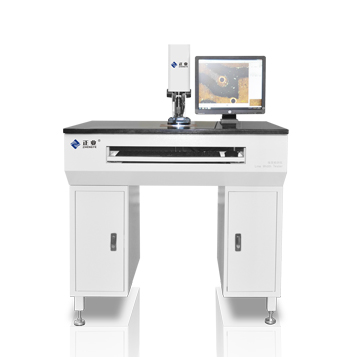

High precision mechanical adjustment device, includes coarse or rigous adjustment to the focus distance. Featuring a high sensitivity colour CCD for clearer images and easy to operate software. This equipment can be used to measure the widths of inner and outer range of semi PCBs after etching (before solder masking). In addition, the distance between two lines, distance between holes and edge, and the diameters of holes and arcs can also be measured. Expanding usage; measure widths of IC wafer, thickness of films and LCD boards.

G. System Specifications

Technical Data

Specification

CCD camera

High senstivity colour CCD

Magnification

Electron: 50xOptics: 1.4x ~ 9x continuously adjustable

Light source

LED ring light (adjustable brightness)LD positioning of light source (red light)

Resolution

0.42 ~ 2.68µm/pixel
